Prodcut Description

FIFO first in first out Drive thru rack system

FILO Drive-in racking and FIFO drive-thru systems are suited to large stocks of relatively few product types. Use this high density system to improve space utilization up to 85%, reduce overall square footage requirements by 35% or more, compared to a standard pallet rack configuration.

Advantages

  • FIFO (first in, first out) or FILO (first in, last out) load methods
  • Deep lane storage improve space utilization, saves costs and holds more loads
  • High volumes, few SKUs
  • Multiple access aisles eliminated
Loading capacity(kg)Length(mm)Depth(mm)Height(mm)
500-1500kgs per pallet1350/1400850/10506000-11850
Customized sizes are available
Upright section80x68,90x68,100x68,120x68,120x85,120x95,etc
Single/double bracketT3.5mm
Ground railT5.0mm
ColorAs required

Product details picture
Fifo First in First out Drive in Racking System


Fifo First in First out Drive in Racking System
Fifo First in First out Drive in Racking System
Fifo First in First out Drive in Racking System
Fifo First in First out Drive in Racking System
Fifo First in First out Drive in Racking System
Fifo First in First out Drive in Racking System

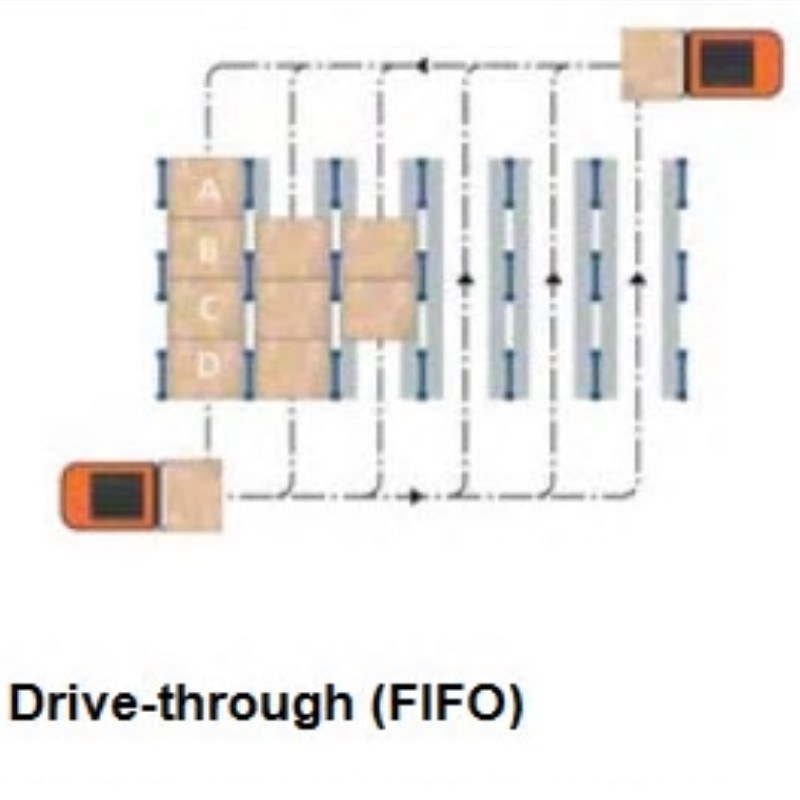

A drive-in pallet racking system creats first in,last out (FILO) access. Meanwhile, a drive-thru system loads on one side and unloads on the other for first in, first out (FIFO) workflows.

Fifo First in First out Drive in Racking System
Fifo First in First out Drive in Racking System

Packaging and Shipping

Fifo First in First out Drive in Racking System

Our Services

Auto CAD layouts & 3D Demonstration

Fifo First in First out Drive in Racking System


Company Information

Hegerls FIFO Drive thru pallet racking, we only use high-strength steel,certified to meet the strictest specifications. All weld operations are controlled through advanced robotics or performed by welders certified to ISO,AWS Standards. Immersion chemical cleaning and a durable powder coating ensure a long service life of rack systems, even under the most demanding industrial conditions.

Fifo First in First out Drive in Racking System


FAQ

1.Are you factory or trading company?

    We are factory with 23 years experience.

2. Where is your factory? Can I visit there?

   Our factory is located in Xinhe county, Hebei province ,Welcome to visit us at any time.

3.May I ask for a sample?

    Yes, you can get a free sample.

4.May I know the payment way?

    T/T, 30% for deposit to start production, 70% balance paid before shipment.

    LC is acceptable.

5. How do you control the quality?

   -Raw material

    The raw materials are from the large state-owned steel companies,each batch has a strict inspection certificate,which ensures the quality of products from the very beginning.

    -Primary process

    First-class processing equipment to ensure the quality.

   -Powder coating

    The world's top Swiss Gema powder coating line to ensure the uniformity, brightness and thickness.

   -Drying process

    The key process to ensure the final quality, after this process, the coated film will be cured.

   -Finished product inspection and packing

6. What support will you do for racking installation?

    Installation instruction or video for simple works,engineer will be sent to site if required.

7. What information shall I provide to start my pallet rack project?

   Pallet size, max. capacity per pallet,the available height of warehouse, forklift specifications.
